SURGICAL INSTRUMENTS

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

The basic instruments that every beginner surgeon
should know are placed in four categories.

1-Cutting and Dissecting
2-Clamping and Occluding
3-Grasping and Holding
4-Retracting and Exposing




Cutting and Dissecting instruments
انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

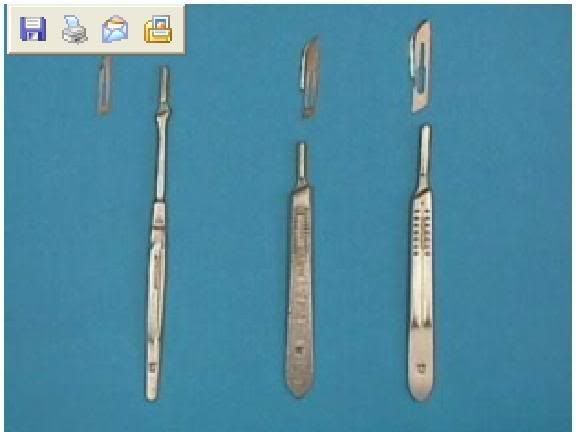

7 handle with 15 blade (deep knife) - Used to cut deep, delicate tissue.
3 handle with 10 blade (inside knife) - Used to cut superficial tissue.
4 handle with 20 blade (skin knife) - Used to cut skin




انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.


Straight Mayo scissors -
Used to cut suture and supplies. Also known as: Suture scissors.
EX: Straight Mayo scissors
being used to cut suture.

[b]

Curved Mayo scissors -
Used to cut heavy tissue (fascia,
muscle, uterus, breast).
Available in regular and long sizes.

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.


Metzenbaum scissors -
Used to cut delicatetissue.
Available in regular and long sizes

[/B
انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

Clamping and Occluding Instruments

Clamping and occluding instruments are
used to compress blood vessels or hollow organs for
hemostasis or to prevent spillage of *******s.

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

A mosquito
is used to clamp small blood vessels.
Its jaws may be straight or curved.

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

A Kelly
is used to clamp larger vessels and tissue.
Available in short and long sizes.
Other names: Rochester Pean



انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

A burlisher
is used to clamp deep blood vessels. Burlishers
have two closed finger rings. Burlishers with an open finger
ring are called tonsil hemostats.
Other names: Schnidt tonsil forcep, Adson forcep

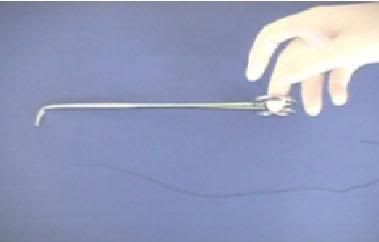

A right angle
is used to clamp hard-to-reach vessels
and to place sutures behind or around a vessel.
A right angle with a suture attached is called a "tie on a Passer”.
Other names: Mixter

A hemoclip applier with hemoclips
applies ****l clips onto blood vessels and ducts which will remain occluded

Grasping and Holding instruments

Grasping and holding instruments are used to hold tissue,
drapes or sponges

منقول

[د/عمـــرو درة]

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

An Allis
is used to grasp tissue. Available in short and long sizes.
"Judd-Allis" holds intestinal tissue;
"heavy allis“ holds breast tissue.

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

A Babcock
is used to grasp delicate tissue (intestine,
fallopian tube, ovary).
Available in short and long sizes

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

A Kocher
is used to grasp heavy tissue. May also be used as a clamp.
The jaws may be straight or curved.
Other names: Ochsner

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

[د/عمـــرو درة]

A Foerster sponge stick
is used to grasp sponges.
Other names: sponge forcep

EX: Sponge sticks holding a 4 X 4 and probang

Mayo-Hegar needle holders
are used to hold needles
They may also be placed in the sewing category.
EX: Needle holder with suture

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

[د/عمـــرو درة]

Thumb forceps are used to grasp tough tissue (fascia, breast).
Forceps may either have many teeth or a single tooth.
Single tooth forceps are also called "rat tooth forceps."

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

A dissector
is used to hold a peanut.

EX: Dissector holding a peanut.

A Backhaus towel clip

is used to hold towels and drapes in place.
Other name: towel clip.

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

Pick ups, thumb forceps and tissue forceps are available
in various lengths, with or without teeth, and smooth or
serrated jaws

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

Russian tissue forceps are used to grasp tissue


انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

Adson pick ups are either smooth: used to grasp delicate tissue
or with teeth: used to grasp the skin. Other names: Dura forceps.

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

DeBakey forceps are used to grasp delicate tissue,
particularly in cardiovascular surgery

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

Thumb forceps are used to grasp tough tissue (fascia, breast).
Forceps may either have many teeth or a single tooth.
Single tooth forceps are also called "rat tooth forceps."

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

Mayo-Hegar needle holders
are used to hold needles
They may also be placed in the sewing category.
EX: Needle holder with suture

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

[د/عمـــرو درة]

Retracting and Exposing instruments



Retracting and exposing instruments are used to
hold back or retract organs or tissue to gain exposure to
the operative site.
They are either "self-retaining" (stay open on their own)
or "manual" (held by hand).

When identifying retractors,look at the blade, not the handle.

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

A Deaver retractor (manual)
is used to retract deep abdominal or chest incisions.
Available in various widths.

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

A Richardson retractor (manual)
is used to retract deep abdominal or chest incisions.

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

An Army-Navy retractor (manual)
is used to retract shallow or superficial incisions.
Other names: USA, US Army

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

A goulet (manual)
is used to retract shallow or superficial incisions.

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

A malleable or ribbon retractor (manual)
is used to retract deep wounds.
May be bent to various shapes

.

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

A Weitlaner retractor (self-retaining)
is used to retract shallow incisions.

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

A Gelpi retractor (self-retaining)
is used to retract shallow incisions.

انقر على هذا الشريط لمشاهدة الصوره بحجمها الطبيعي.

A Balfour with bladder blade (self-retaining)

is used to retract wound edges during deep abdominal procedures.
